ESFR-25 Electronically Controlled Sprinkler
For ASRS Protection with the EAS-1 Electronically Activated Sprinkler System
![A sprinkler with a nozzle on a white background](/-/media/project/jci-global/fire-suppression/tyco-fire/tyco-fire/resized-static-pdp-images/fis_residentialproductfamily_productcardimage_esfr-25_1.png?h=400&w=694&la=en&hash=C1E1E7527C498303C6E32A025257BB33)
Enhanced Protection of Automatic Storage Retrieval Systems

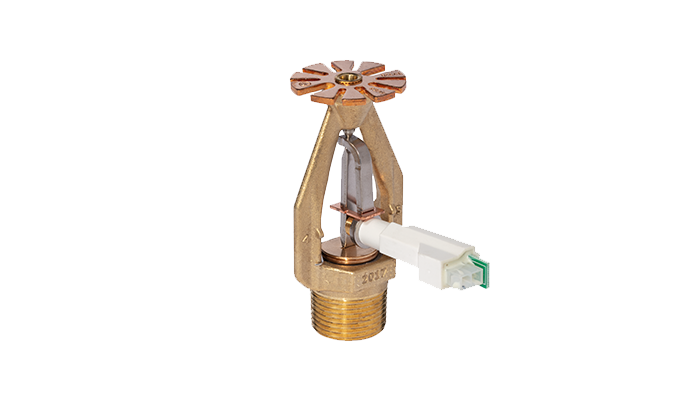

This ESFR-25 sprinkler is a UL Listed electronically activated sprinkler head. It is specifically engineered to provide effective fire protection for an ASRS-A configuration of an Automated Storage and Retrieval System (ASRS) as part of an EAS-1 electronically activated sprinkler system.
Using the electronically activated ESFR-25, the system is specifically designed for protection of the Attabotics 3D robotic automation warehousing and fulfillment systems. The solution utilizes a combination of smoke and heat sensors to identify the fire location and simultaneously operate only those sprinklers required to address the fire.
Using the electronically activated ESFR-25, the system is specifically designed for protection of the Attabotics 3D robotic automation warehousing and fulfillment systems. The solution utilizes a combination of smoke and heat sensors to identify the fire location and simultaneously operate only those sprinklers required to address the fire.
![Interior of a storage unit with rows of racks](/-/media/project/jci-global/fire-suppression/tyco-fire/tyco-fire/resized-static-pdp-images/eas-1-overview-resized.png?h=1037&w=1380&la=en&hash=46884650740C8DCDA62CB5F7808AFBC7)
Benefits
![Icon of skycrapers in a sequence](/-/media/project/jci-global/fire-suppression/tyco-fire/tyco-fire/icons/bts_icon_benefit_icon_building1.png?h=128&w=128&la=en&hash=5EB55DA5BB430A7CE75A7452CE1F20AC)
Use your Existing Infrastructure
Avoid the cost of new pipe and fire pumps with a retrofit solution that replaces the sprinkler heads on your existing piping.
![A rectangualr icon with two faced arrows](/-/media/project/jci-global/fire-suppression/tyco-fire/tyco-fire/icons/bts_icon_benefit_icons_customizable.png?h=128&w=128&la=en&hash=6FEF630485B5E6AB9432570A8271A820)
Maximize Warehouse Flexibility
Change storage arrangements and commodity classifications without changing your fire protection system.
![Icon of a fire within a triangle](/-/media/project/jci-global/fire-suppression/tyco-fire/tyco-fire/icons/bts_icon_benefit_icons_decrease_risk.png?h=128&w=128&la=en&hash=56E3FE64B77DDEFAFA2B93E437D9DAC2)
Lower Fire Risk Profile
Reduced potential for direct and indirect property damage and loss of downtime due to fire.
![Icon of three water droplets enclosed in a prohobition sign](/-/media/project/jci-global/fire-suppression/tyco-fire/tyco-fire/icons/bts_icon_benefit_icon_water_damage.png?h=128&w=128&la=en&hash=4EF65F51067D9D717F40CF8683180171)
Reduce Fire and Water Damage
Earlier detection means 60% smaller fires and significantly reduced water damage, and minimized clean-up costs.
Technical Specification
Application | Storage/Warehouse | Hazard | Storage - High |
Max # of Heads | 3,000 heads per EAS-1 control unit | Max Working Water Pressure | 175 psi (12,1 bar) |
Orientation | Pendent | K-Factor | 25.2 |
Thread | 1-inch | Approvals | UL and C-UL Listed |
Install Requirements | Co-located heat sensor must be installed within 12 inches (30,5 cm) laterally and 36 inches (0,9 m) vertically | SIN Number | TY920 |
Wrench | W1 | Note | See Technical Data Sheet for details |
Technical Resources
Back
Next
Related Products
![EAS-1 Sprinkler Control Heat Sensor](/-/media/project/jci-global/fire-suppression/tyco-fire/tyco-fire/resized-static-pdp-images/fis_residentialproductfamily_productcardimage_eas-1-sensor_1.png)
EAS-1 Sprinkler Control Heat Sensor
- Approvals : UL and C-UL Listed
- Hazard: Storage - High
![EAS-1 Control Unit](/-/media/project/jci-global/fire-suppression/tyco-fire/tyco-fire/resized-static-pdp-images/fis_residentialproductfamily_productcardimage_eas-1-panel_1.png)
EAS-1 Control Unit
- Approvals : UL and C-UL Listed
- Hazard: Storage - High
- CPU Capacity: 3,000 addressable Sprinkler Control Heat Sensors
